CONCASOARE MOBILE

CONCASOARE MOBILE

Prezentare generala

Our range of jaw, cone and impact crushers provide unbeatable performance and mobility across a wide range of applications.

Avantajele generale

  • Superior product shape
  • Highest reduction ratio
  • Ability to track while producing
  • Intake hopper suitable for wheel loader and excavator
  • Easy to transport and compact dimensions

Engine speed required to achieve maximum productivity

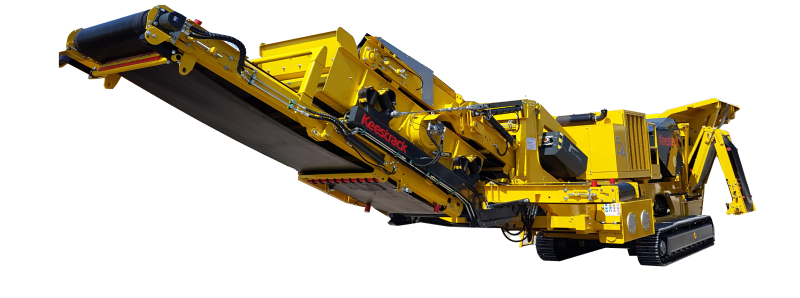

Concasoare mobile cu falci

Performance through innovation

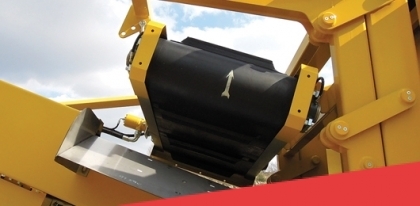

Hydraulic adjustable overband magnet

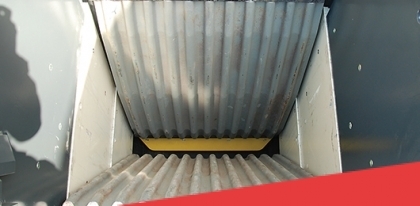

Hydraulic gap adjustment

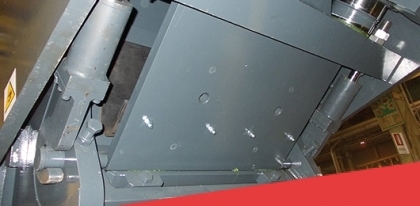

Hydraulic tensioning

Relytec control system

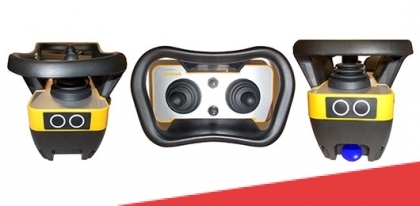

Smart sequential auto start/stop from remote

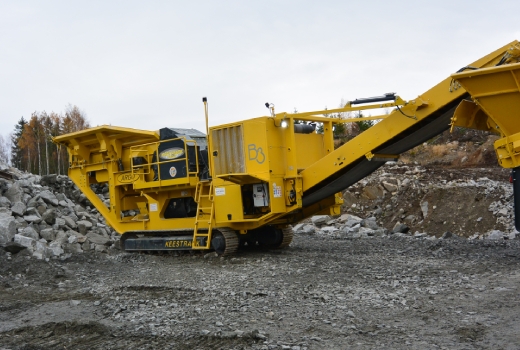

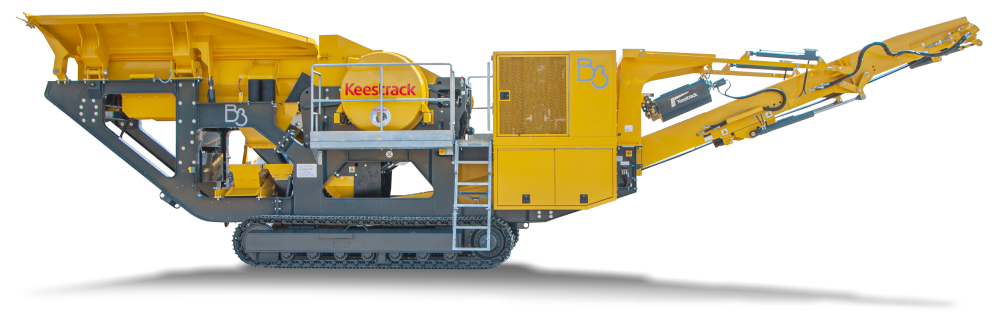

Keestrack B3

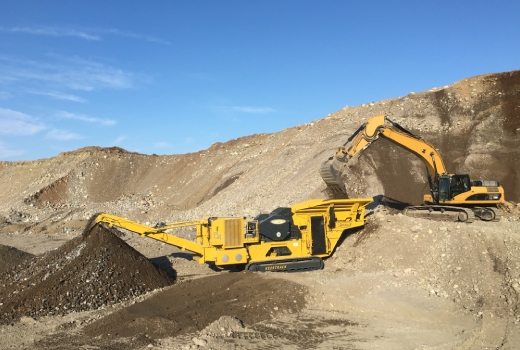

Keestrack B4

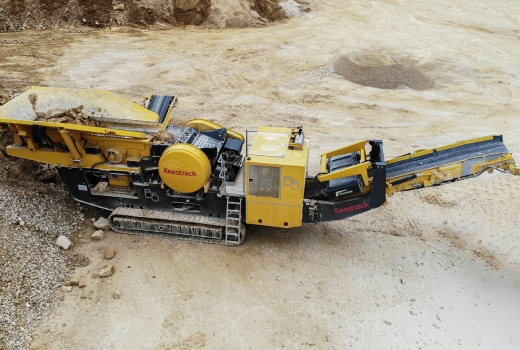

Keestrack B5

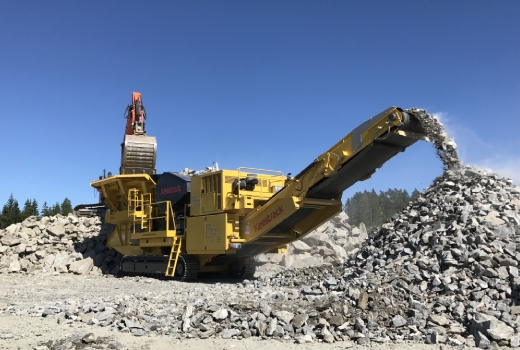

Keestrack B7

Specificatii

Concasoare mobile cu falci Greutate operationala Capacitate de productie Gura alimentare Min CSS Max CSS Dimensiuni de trasport (L x l x h) Actionare
Keestrack B3 aprox. 30 tone pana la 280 t/h 1000 x 650 mm 45mm 160mm 12,44 x 2,54 x 3,10 m Diesel/Hidraulic
Keestrack B4 aprox. 44 tone pana la 400 t/h 1100 x 700 mm 45mm 160mm 14,50 x 2,70 x 3,39 m Diesel/Hidraulic
Keestrack B5 aprox. 44,2 tone/47 tone pana la 400 t/h 1110 x 750 mm 45mm 180 mm 14,06 x 2,73 x 3,40 m Diesel/Hidraulic sau Diesel/Electric, Electric plug-in
Keestrack B7 aprox. 69,1 tone pana la 600 t/h 1200 x 830 mm 75 mm 250 mm 15,29 x 3,17 x 3,55 m Diesel/Hidraulic sau Diesel/Electric, Electric plug-in

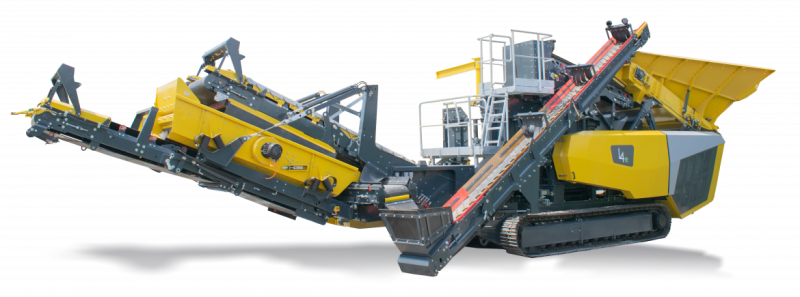

Concasoare mobile cu impact

Performance through innovation

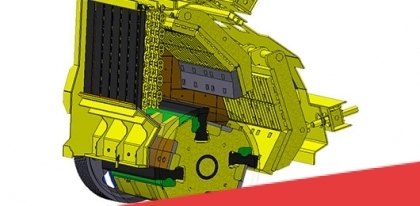

Unrivalled performing crushing chamber

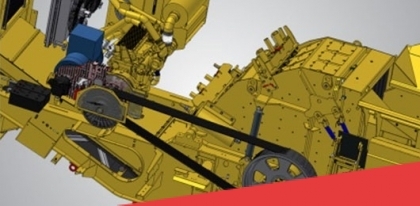

Electric drive powered version with direct drive motor

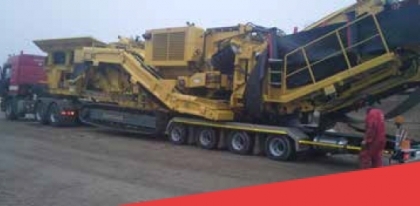

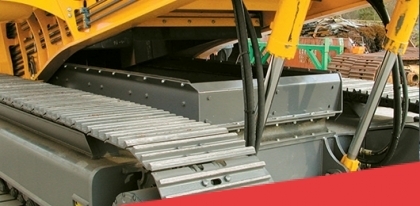

Dolly transport system

Patented tilted chassis

Relytec control system

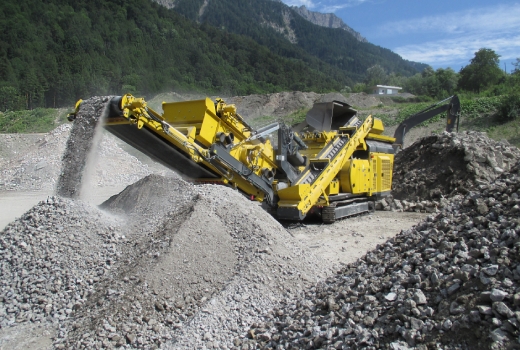

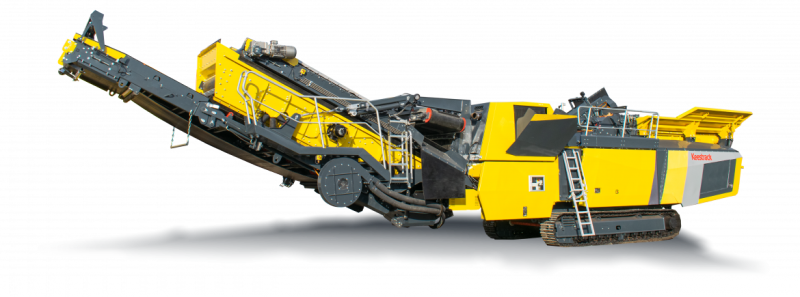

Keestrack R3

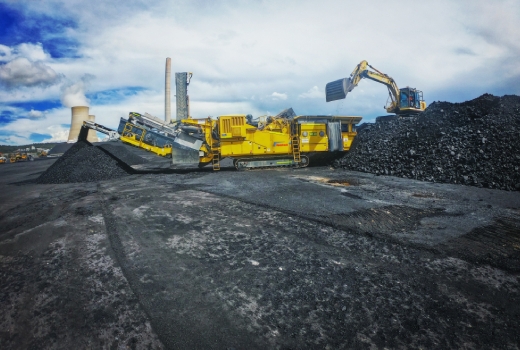

Keestrack R6

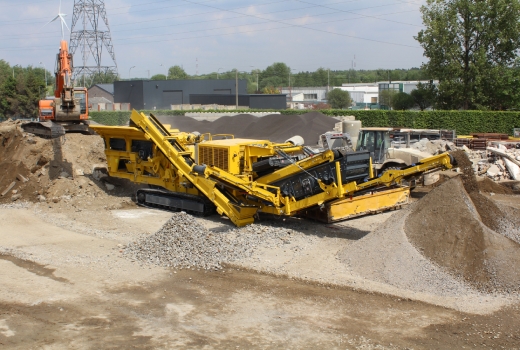

Keestrack R5

Specificatii

Concasoare mobile cu impact Greutate operationala Capacitate de productie Gura alimentare Dimensiuni de trasport (L x l x h) Dimensiuni de transport cu ciur si kit recirculare (L x l x h) Actionare
Keestrack R3 aprox. 27,5 tone pana la 250 t/h 770 x 960 mm 12,44 x 2,54 x 3,10 m - Diesel/Hidraulic sau Diesel/Electric, Electric plug-in
Keestrack R5 aprox. 27,5 tone (Greutate operationala cu ciur si kit recirculare: aprox. 33,2 tone) pana la 250 t/h 770 x 960 mm 14,50 x 2,70 x 3,39 m 12,9 x 2,54 x 3,2 m Diesel/Hidraulic sau Diesel/Electric, Electric plug-in
Keestrack R6 aprox. 44,2 tone/47 tone pana la 500 t/h 970 x 1300 mm 14,06 x 2,73 x 3,40 m 17,8 x 3,2 x 3,67 m Diesel/Hidraulic sau Diesel/Electric, Electric plug-in

Concasoare mobile cu con

Performance through innovation

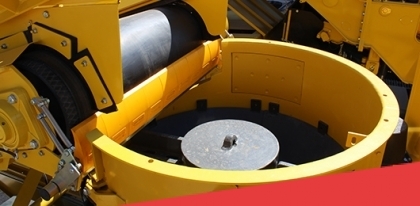

Proven cone technology

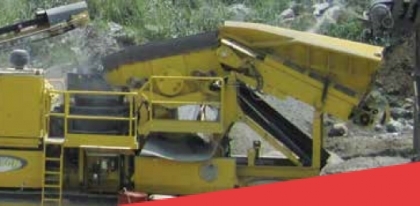

Independent pre-screen

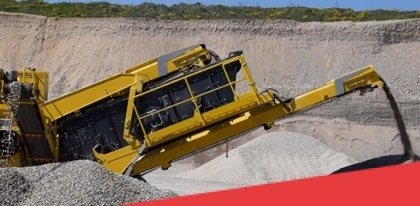

Three-deck afterscreen

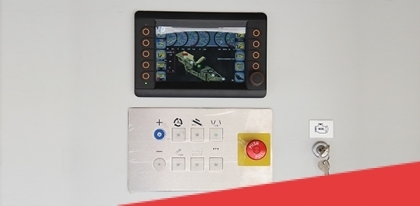

Relytec control system

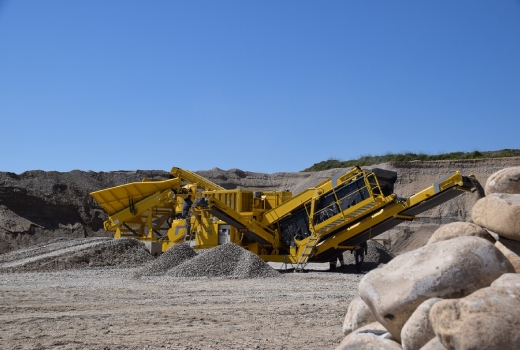

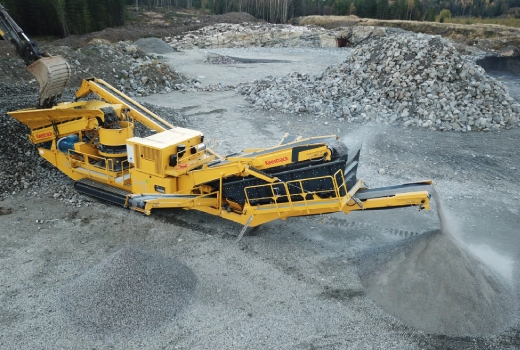

Keestrack H4e

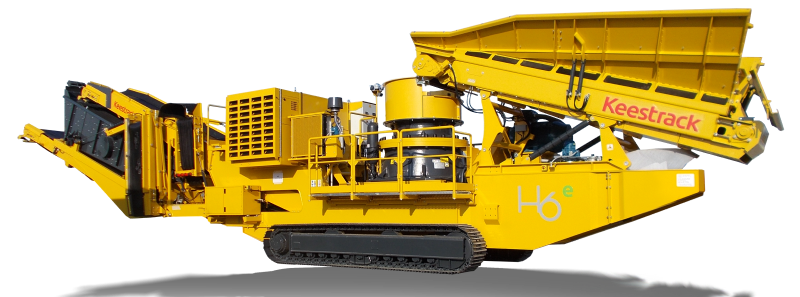

Keestrack H6e

Specificatii

Concasoare mobile cu con Greutate operationala Capacitate de productie Dimensiune maxima material alimentat Min CSS Max CSS Optional Dimensiuni de trasport (L x l x h) Actionare
Keestrack H4e aprox. 35 tone (Greutate operationala cu ciur 3 nivele: aprox. 46 tone) pana la 208 t/h 185 mm 6 mm 38 mm Ciur 3 nivele, suprafata 3,6 x 1,5 m cu benzi pliabile 12,44 x 2,54 x 3,10 m Dimensiuni de transport cu ciur 3 nivele (L x l x h): 18,5 x 3 x 3,45 m Diesel/Hidraulic sau Diesel/Electric, Electric plug-in
Keestrack H6e aprox. 51,5 tone (Greutate operationala cu ciur 3 nivele: aprox. 62,1 tone) pana la 395 t/h 215 mm 16 mm 44 mm Ciur 3 nivele, suprafata 4,8 x 1,8 m cu benzi pliabile 14,50 x 2,70 x 3,39 m (Dimensiuni de transport cu ciur 3 nivele (L x l x h): 20,34 x 3 x 3,65 m) Diesel/Hidraulic sau Diesel/Electric, Electric plug-in
