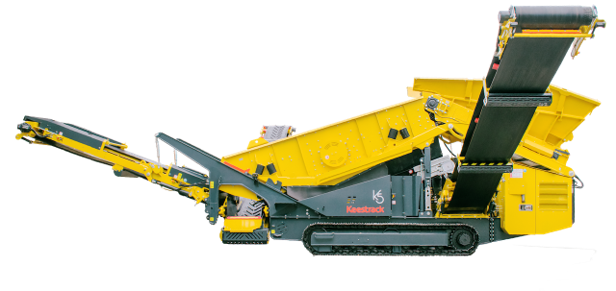

STATII DE SORTARE MOBILE

STATII DE SORTARE MOBILE

Prezentare generala

Keestrack was the first with direct feed screens and even today the competition cannot match the results we have with this concept. The original Keestrack concept is today’s industry standard. Because of this concept, the application fields of our screens have increased because the screen can be used as a pre-screen for rough material or as a precision screen for fines.

Our scalper and classifier screens offer high performance, high mobility solutions - whatever the task.

Avantajele generale

  • Unrivaled performance
  • Electric, energy saving, plug-in versions available
  • Lowest fuel consumption in the industry

Engine speed required to achieve maximum productivity

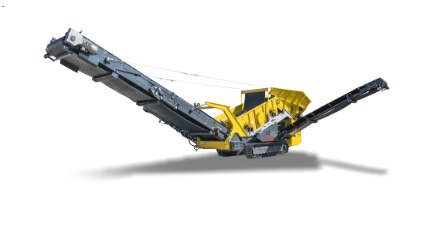

Statii de sortare cu ciur heavy-duty

Performance through innovation

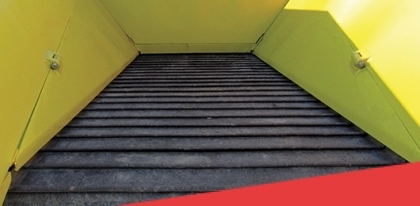

Standard heavy duty apron feeder

Hydraulic liftable screen box

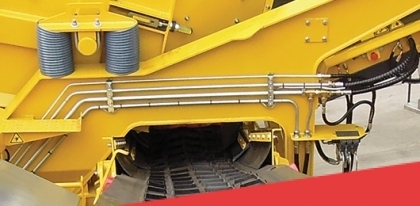

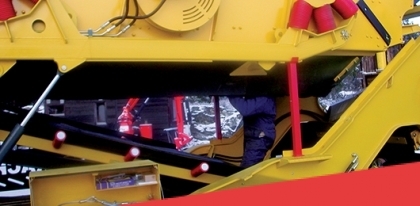

Steel hydraulic lines

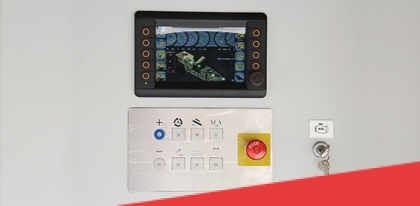

Relytec control system

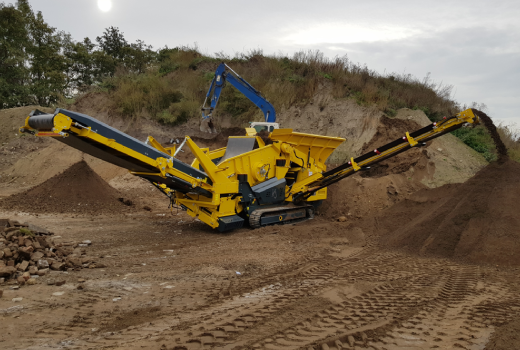

Statii de sortare cu ciur heavy-duty K3

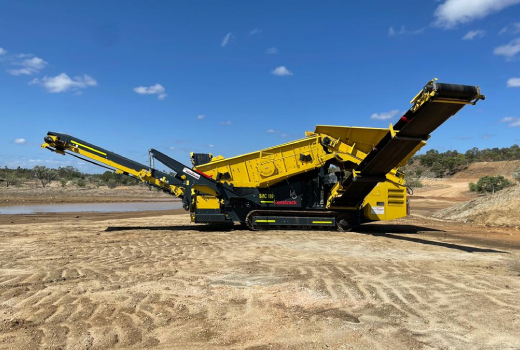

Statii de sortare cu ciur heavy-duty K5

Statii de sortare cu ciur heavy-duty K7

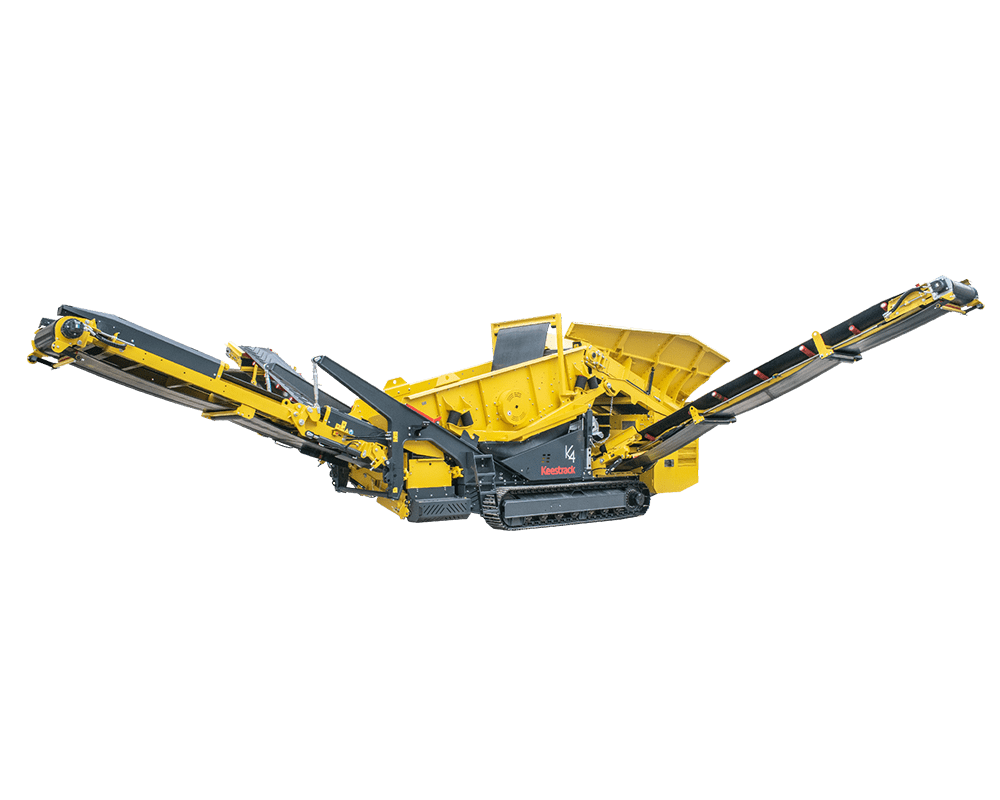

Statii de sortare cu ciur heavy-duty K4

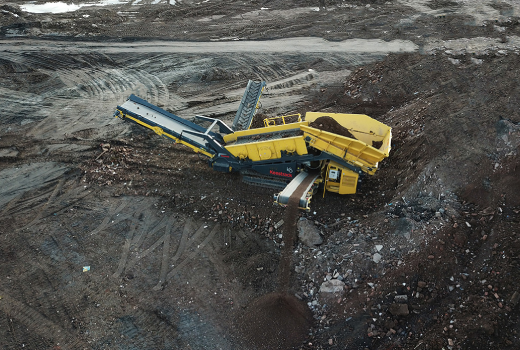

Statii de sortare cu ciur heavy-duty K6

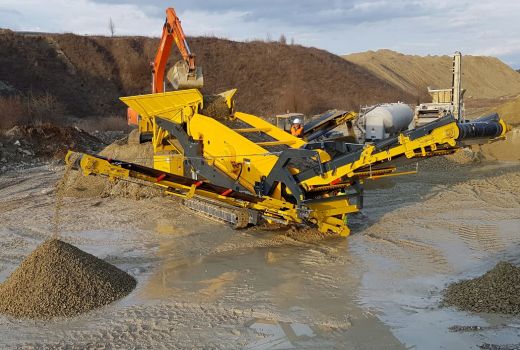

Statii de sortare cu ciur heavy-duty K8

Specificatii

Statii de sortare cu ciur inclinat heavy-duty Ciur Greutate operationala Capacitate de productie Dimensiuni de trasport (L x l x h) Actionare
Keestrack K3 2 nivele, suprafata 2,7 x 1,2 m aprox. 17 tone pana la 250 t/h 9,80 x 2,55 x 3,12 m Diesel/Hidraulic sau Diesel/Electric, Electric plug-in
Keestrack K4 2 nivele, suprafata 4,2 x 1,5 m aprox. 26,55 tone pana la 350 t/h 10,73 x 2,81 x 3,13 m Diesel/Hidraulic sau Diesel/Electric, Electric plug-in
Keestrack K5 2 nivele, suprafata 5 x 1,5 m aprox. 28,5 tone pana la 450 t/h 11,3 x 2,55 x 3,33 m Diesel/Hidraulic sau Diesel/Electric, Electric plug-in
Keestrack K6 2 nivele, suprafata 4,5 x 1,8 m aprox. 30 tone pana la 600 t/h 13,36 x 2,72 x 3,18 m Diesel/Hidraulic sau Diesel/Electric, Electric plug-in
Keestrack K7 2 nivele, suprafata 4,5 x 1,8 m aprox. 32 tone pana la 1000 t/h 13,36 x 2,72 x 3,38 m Diesel/Hidraulic sau Diesel/Electric, Electric plug-in
Keestrack K8 2 nivele, suprafata 6 x 2 m aprox. 43,5 tone pana la 1200 t/h 15,35 x 3,2 x 3,6 m Diesel/Hidraulic sau Diesel/Electric, Electric plug-in

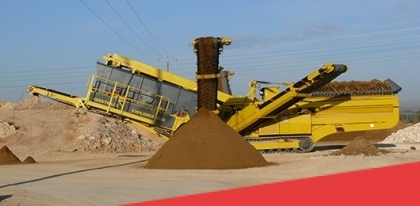

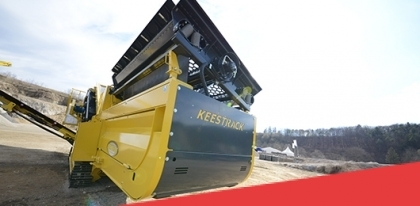

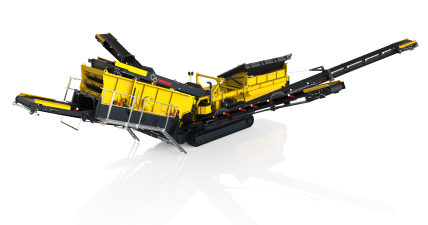

Statii de sortare cu ciur inclinat

Performance through innovation

Vibrating tipping grid

Quick set up times, no support legs

Relytec control system

Relytec control system

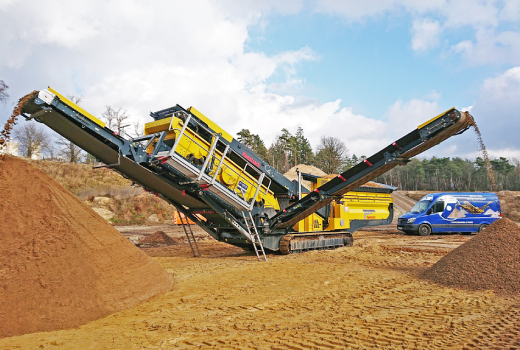

Statii de sortare cu ciur inclinat C4

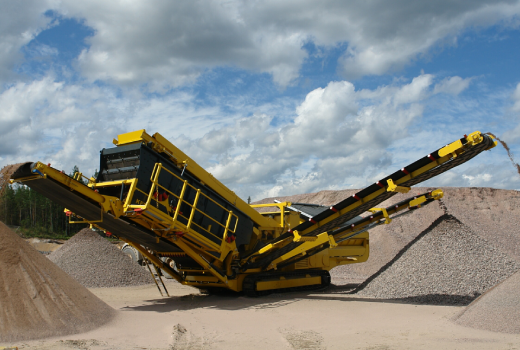

Statii de sortare cu ciur inclinat C6

Specificatii

Statii de sortare cu ciur inclinat Ciur Greutate operationala Capacitate de productie Dimensiuni de trasport (L x l x h) Actionare
Keestrack C4 2/3 nivele, suprafata 3,6 x 1,5 m aprox. 25 (2 Deck) / 28 tone (3 Deck) pana la 400 t/h 13,70 x 2,55 x 3,15 m Diesel/Hidraulic
Keestrack C6 2/3 nivele, suprafata 4,5 x 1,8 m aprox. 28 (2 Deck) / 31 tone (3 Deck) pana la 400 t/h 14,30 x 2,73 x 3,10 m Diesel/Hidraulic sau Diesel/Electric, Electric plug-in
