TRATAREA APEI UZATE

apa-uzata-banner

TRATAREA APEI UZATE

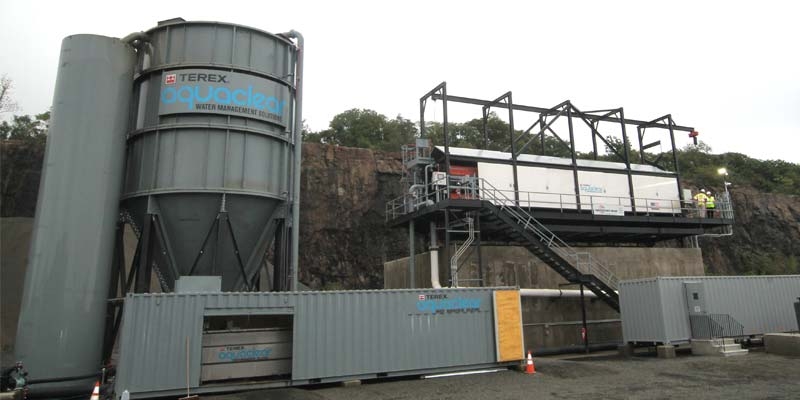

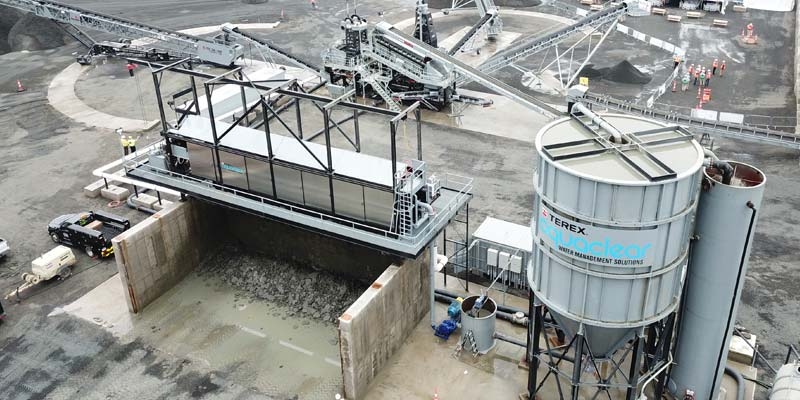

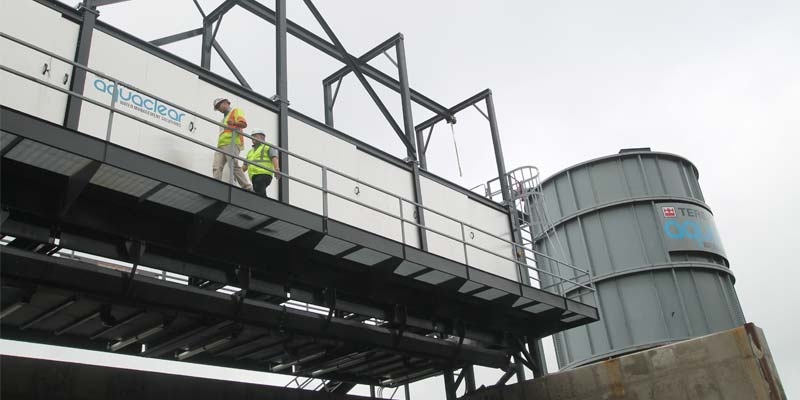

Terex Washing Systems offers a complete tailored solution for water management and treatment, including a full range of flocculant dosing systems, thickener tanks and a full range of filter presses. Combined this equipment can remove the need for settling ponds.

It is critical that systems are selected appropriate to your specific materials, so the solution can be refined according to your specific requirements. This includes qualified sampling and testing to ensure complete peace of mind for performance and the ability to handle inevitable feed variations.

Intelligent automation is common throughout our equipment range and this is particularly relevant to water management systems. The majority of our systems include fully automated control and adjustment of the flocculant dose, according to the amount of suspended solids and settlement time required. This ensures maximum performance even with highly variable feed materials such as materials derived from recyclable sources to ensure optimum levels of flocculant dosing.

Our wide choice of thickener models and formats ensures you are offered the best solution for your individual needs, all with low operational cost and maximum dewatering in mind. Following the thickener you have a widechoice of filter presses, again depending upon your individual material characteristics and performance needs.

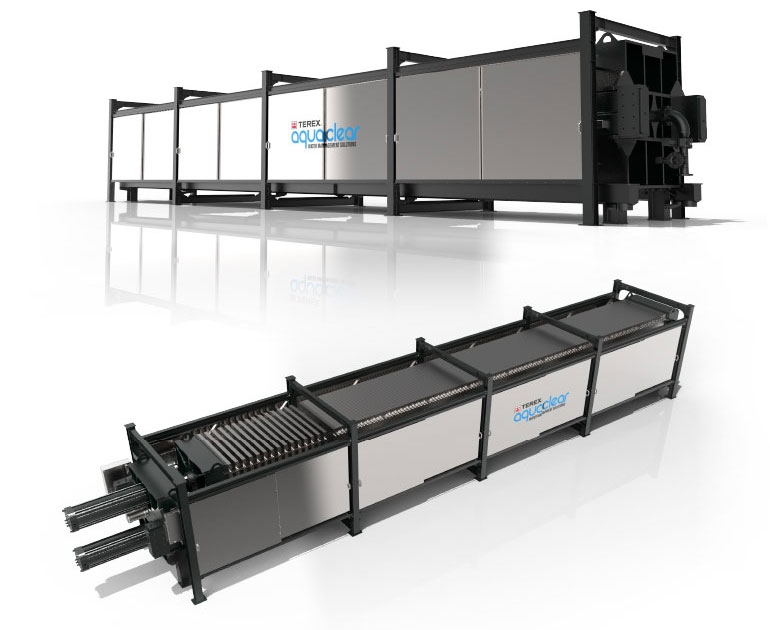

FILTER PRESS

The AquaClear filter press range are a high performance, side beam plate and frame filter press designed specifically for demanding aggregate, mining and recycling applications. The heavy-duty construction and high pressure slurry pump technology combined with optimally sized hydraulic rams ensures maximum performance and reliability, maximising water recovery, higher production and faster cycle times. Safety features include; hydraulic rams operating at 200 bar (2900psi) pressure and industry leading stainless steel sliding doors, enhancing operator safety. Pneumatically operated plate shakers are fitted as standard to aid removal of sticky cakes.

PUNCTE CHEIE

  • Heavy duty frame construction
  • High pressure design for maximum moisture removal
  • Optimised hydraulic design
  • Various plate sizes and chamber configurations
  • Faster cycle times
  • Pneumatic plate shakers to aid cake removal

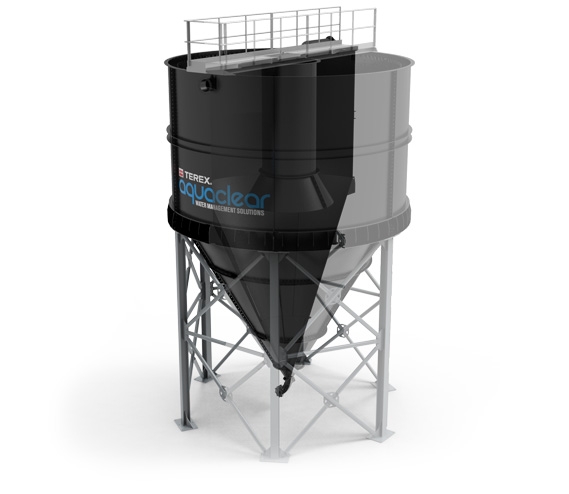

DEEP CONE THICKENER

Terex deep cone thickeners are designed and constructed to give optimum performance and reliability in even the toughest applications. The deep cone provides a smaller footprint than a rake style thickener saving space on site. The thickened sludge underflow can reach solids content of over 50%. With no moving parts there is minimal servicing requirement.

PUNCTE CHEIE

  • Heavy duty frame construction
  • Smaller footprint than rake style thickenerl
  • Sludge discharges under gravity (no pump required)
  • Thicker sludge (over 50% solids)
  • No moving parts

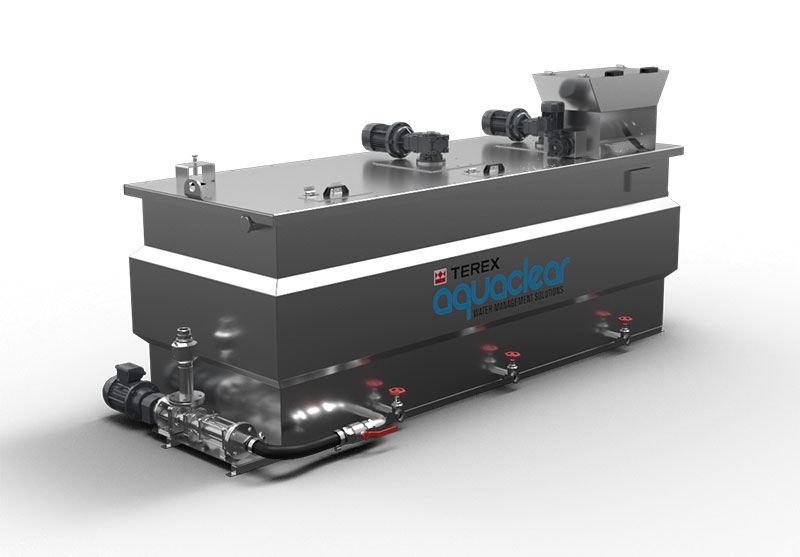

FLOCCULANT DOSING UNIT

Terex deep cone thickeners are designed and constructed to give optimum performance and reliability in even the toughest applications. The deep cone provides a smaller footprint than a rake style thickener saving space on site. The thickened sludge underflow can reach solids content of over 50%. With no moving parts there is minimal servicing requirement.

PUNCTE CHEIE

  • Stainless Steel Construction
  • Sized to minimise flocculant consumption
  • Fully automated control system
  • Real time flocculant dosage controller

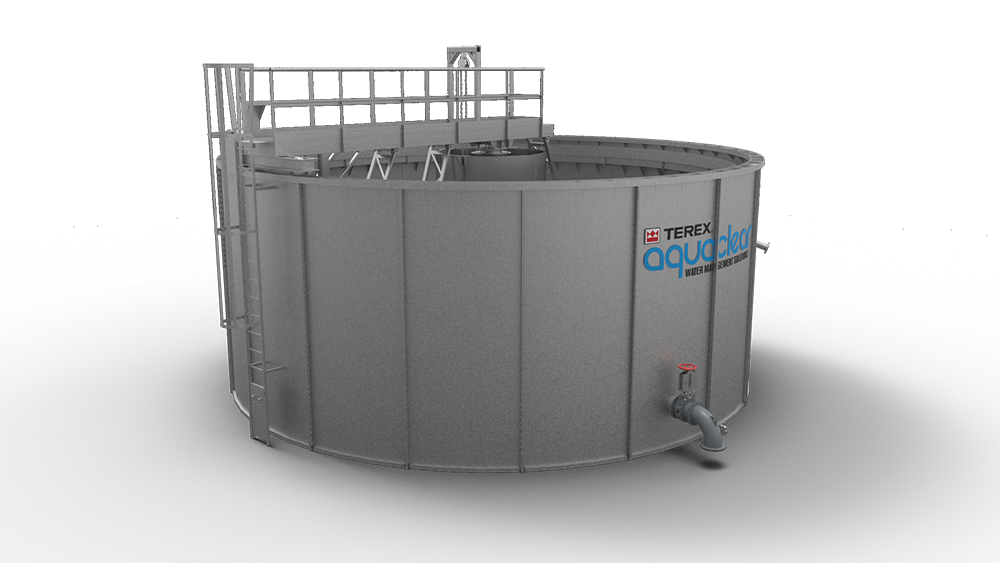

RAKE THICKENER

TWS also offers a range of rake style, high rate thickeners which allow for minimal feed height, facilitating gravity feed from upstream cyclone based washing systems. Rake thickeners are designed specifically to deal with high volumes of slurry.

PUNCTE CHEIE

  • Produces sludge with 30 - 40% solids content
  • Low level feed in height to enable gravity feed
  • The facility to incorporate surface skimmer for removal of light weight trash.
  • Can handle high volumes of slurry
  • Combined thickening and clarification
